Purified Water Equipment

Stainless Steel Purified Water Equipment

A project-configured double-pass RO system with stainless construction and sanitary storage, disinfection and distribution options for controlled process-water applications.

Check required data Back to Purified Water Equipment

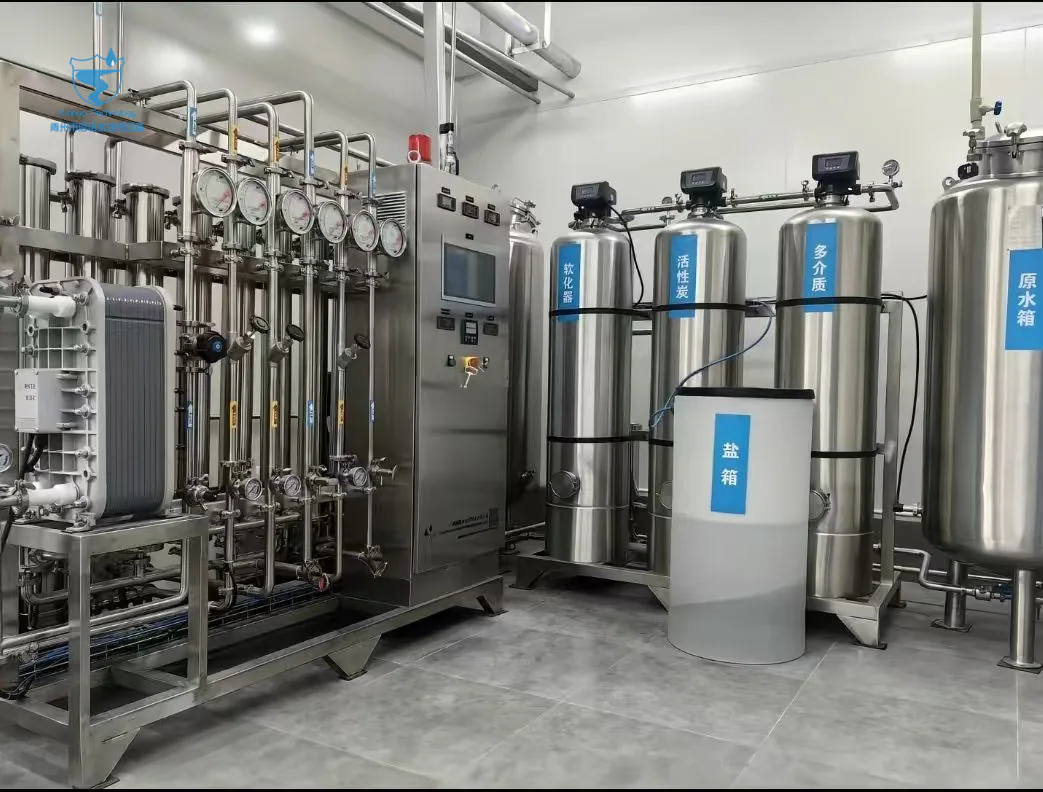

Xinnuo stainless steel purified water equipment factory photo 1

Image 1 of 5: Xinnuo stainless steel purified water equipment factory photo 1

Quick quotation

Confirm the complete purified-water boundary

Send the feed-water analysis, required flow, applicable water-quality target, storage volume, loop data and sanitization method. We will confirm the process and material scope before quotation.

WhatsApp engineer
  • Core processPretreatment + double-pass RO
  • Product-water targetConfirmed from application and applicable standard
  • RO desalination>=99.5% overall reference under suitable conditions
  • Frame and vessels304 or 316L stainless steel by project
  • Sanitary optionsTank, recirculation loop, UV, ozone or heat sanitization
  • ControlPLC, conductivity monitoring, alarms and quality divert

Final water quality depends on the complete generation, storage and distribution design, not the RO skid alone.

PARAMETERS

Technical Specifications

ParameterProject reference
Core processPretreatment + double-pass RO + sanitary downstream treatment
Typical project range0.5-20 m3/h; final capacity is selected from hourly and daily demand
Overall RO desalination>=99.5% reference under suitable feed, temperature, pressure and recovery conditions
Product-water qualityConductivity and microbiological targets confirmed from the application and applicable standard
Equipment frame304 or 316L stainless steel selected by project requirement
Product-water piping304/316L stainless steel or sanitary project specification
Storage and distributionSanitary tank and recirculation loop engineered from use points and return conditions
DisinfectionUV, ozone, hot-water or chemical sanitization options
InstrumentationConductivity monitoring, flow and pressure indication, tank level, alarms and quality divert
Power supplyMatched to destination voltage, phase and frequency
APPLICATIONS

Typical Applications

ApplicationDesign focus
Pharmaceutical purified waterApplicable compendial target, sanitary storage, recirculation, sanitization and validation boundary
Cosmetics and personal careControlled process water, hygienic storage and repeatable cleaning
Food and beverage ingredient waterProduct specification, material compatibility and microbial control
Clean process-water roomsStainless construction, protected storage and monitored distribution
PROCESS FLOW

Purified-water generation and distribution route

The complete route protects water quality from raw-water pretreatment through generation, storage and every use point. Optional polishing and sanitization stages are selected only from the project standard and risk assessment.

  • Raw-water tank, pump and project-specific pretreatment
  • Precision filtration and antiscalant or softening where required
  • First-pass RO and intermediate tank
  • Second-pass RO with online conductivity monitoring
  • Optional EDI, UV, ozone or terminal filtration
  • Sanitary product-water tank with protected vent
  • Recirculation pump and sanitary distribution loop
  • PLC controls, alarms, interlocks and quality divert

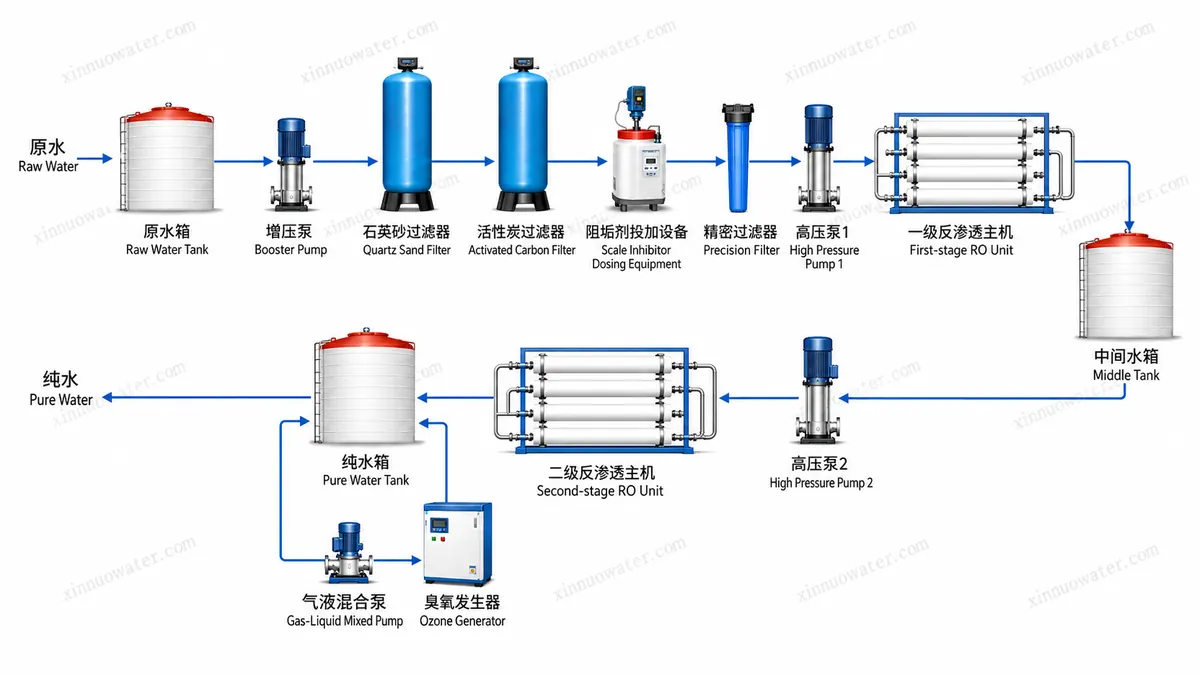

Stainless steel purified water equipment process flow
Reference route only. Pretreatment, polishing, storage and loop details are confirmed from feed analysis and the applicable quality target.
WATER TREATMENT PRINCIPLE

Purified water is more than an RO outlet

Two membrane passes reduce dissolved salts and stabilize conductivity, but the required water quality must remain protected after generation.

Tank venting, drainability, dead-leg control, circulation velocity, surface finish, sanitization and monitoring all affect the quality delivered at the use point.

The system is not automatically suitable for Water for Injection. WFI and other critical applications require their own applicable production, storage, distribution and validation review.

WHY THIS ROUTE

Practical selection advantages

  • Double-pass RO for a lower and more stable conductivity target
  • Stainless construction for controlled production areas
  • Sanitary tank, distribution and sanitization options
  • Generation and downstream loop engineered as one project boundary
CONFIGURATIONS

Available Configurations

ConfigurationBest fitSelection note
Compact double-pass RO skidSmall clean production room or a limited number of use pointsTypical 0.5-1 m3/h route with project-selected tank and polishing options
Production purified-water systemMedium continuous process-water demandTypical 2-5 m3/h route with sanitary storage and monitored loop
Central purified-water roomMultiple production areas or higher redundancyTypical 10-20 m3/h multi-skid route with loop and sanitization engineering
PROJECT OPTIONS

Configuration Options

  • 304 or 316L stainless product-water contact parts
  • Sanitary tank with spray device and hydrophobic vent filter
  • EDI polishing, UV, ozone and terminal filtration
  • Ambient, hot-water or chemical sanitization route
  • Loop return conductivity, temperature and flow monitoring
  • Data logging, remote monitoring and qualification-document support
QUOTE DATA

Before quotation, send these details

  • Raw-water source, TDS and complete analysis when available
  • Required product-water flow, peak demand and daily operating hours
  • Applicable water-quality standard and use-point limits
  • Required material grade, surface finish and certification scope
  • Tank volume, loop length, pipe size, use-point count and return conditions
  • Required sanitization method and operating temperature
  • Installation room layout, drainage and utility connections
  • Destination voltage, phase, frequency and control requirements
BUYER QUESTIONS

Purified-water questions before quotation

These checks define whether the skid, sanitary storage and loop are matched to the same quality target.

Is every stainless RO system purified-water equipment?

No. The water-quality target, storage, distribution, sanitization and monitoring strategy must all match the application.

Should 304 or 316L stainless steel be used?

The material grade depends on the applicable standard, cleaning chemistry, chloride exposure, surface-finish requirement and buyer specification.

Can a sanitary storage tank and circulation loop be included?

Yes. Send the tank volume, loop length, use-point count, return flow, operating temperature and sanitization method.

Is purified water the same as Water for Injection?

No. WFI has separate production, storage, distribution and validation requirements. Confirm the applicable standard before equipment selection.
